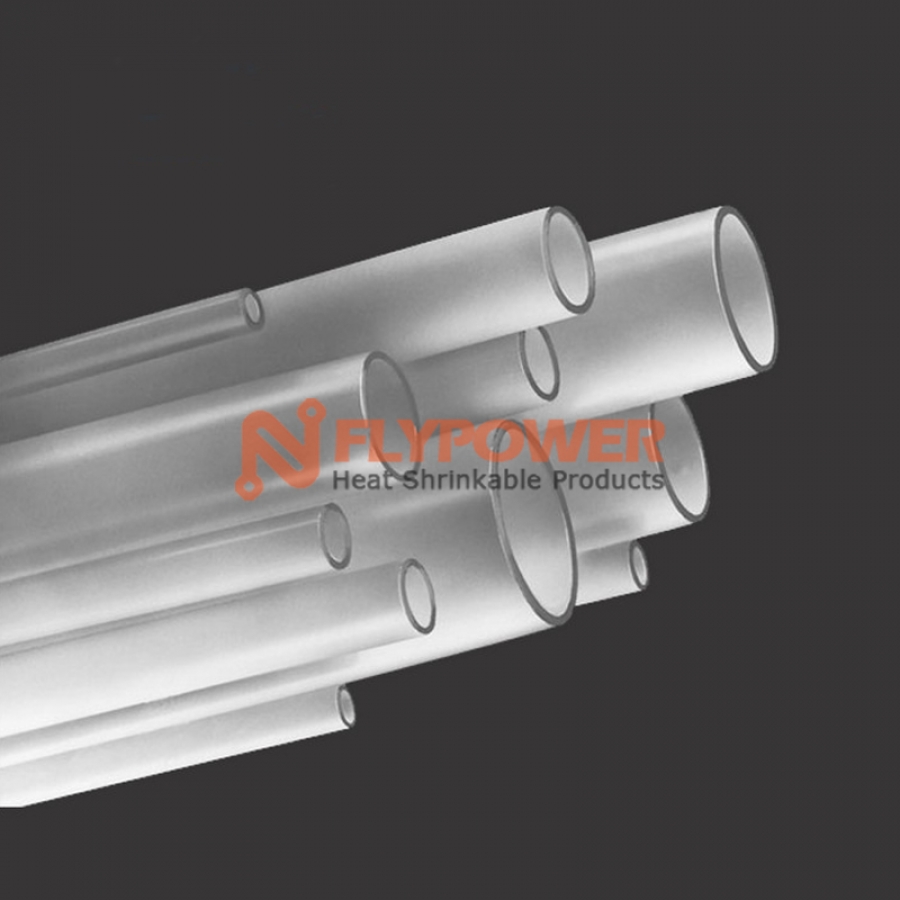

Medical grade 175℃ Semi-rigid PVDF heat shrink tubing BH-MT-PVDF-175K
- Applications: It can be designed for the insulation protection of medical devices which require smoothness and high insulation performance.
- Characteristics: BH-MT-PVDF-175K made of the USP Class VI medical-grade polyvinylidene fluoride (PVDF) material. It is suitable for the operation in a high temperature environment, and has stable performance to chemical substance such as alcohol as well as excellent mechanical abrasion resistance.
-
Operating temperature range: Operating temperature: -65℃～175℃;
Minimum shrink temperature: 155˚C
Minimum fully recovery temperature: 175℃; -
Approvals / Specifications: ISO 10993-1 compliant
Compatibility with gamma rays and ETO sterilization - Colors: Black, Transparent
|
Size |
As supplied (mm) |
After recovered (mm) |
Standard length |
||
|
ID(Min.) |
ID(Max.) |
Wall thickness(mm） |
M/Roll |
M/Pc |
|
|
1.2 |
≥1.2 |
≤0.6 |
0.25±0.10 |
200 |
1.22 |
|
1.6 |
≥1.6 |
≤0.8 |
0.25±0.10 |
200 |
1.22 |
|
2.4 |
≥2.4 |
≤1.2 |
0.25±0.10 |
200 |
1.22 |
|
3.2 |
≥3.2 |
≤1.6 |
0.25±0.10 |
200 |
1.22 |
|
4.8 |
≥4.8 |
≤2.4 |
0.25±0.10 |
200 |
1.22 |
|
6.4 |
≥6.4 |
≤3.2 |
0.30±0.10 |
100 |
1.22 |
|
9.5 |
≥9.5 |
≤4.8 |
0.30±0.10 |
100 |
1.22 |
|
12.7 |
≥12.7 |
≤6.4 |
0.30±0.10 |
100 |
1.22 |
|
19.1 |
≥19 |
≤9.5 |
0.43±0.12 |
100 |
1.22 |
|
25.4 |
≥25 |
≤12.7 |
0.48±0.12 |
50 |
1.22 |
|
38.1 |
≥38 |
≤19 |
0.51±0.12 |
50 |
1.22 |
|
50.8 |
≥51 |
≤25.4 |
0.58±0.15 |
50 |
1.22 |
Cross Reference
Tyco-Raychem: MT-1000
|
Property |
Test Method |
Typical Data |
|
Longitudinal change |
ASTM D2671 |
-10%~10% |
|
Tensile strength |
ASTM D2671 |
≥34.5Mpa |
|
Volume resistivity |
ASTM D2671 |
≥1013Ω.cm |
|
Dielectric voltage withstand |
ASTM D2671 |
AC2500V/60S |
|
No breakdown |
||
|
Elongation at break |
ASTM D2671 |
≥200% |
|
Heat shock |
ASTM D2671 |
No cracking |
|
(275˚C/4 hrs) |
||
|
Low temperature flexibility |
ASTM D2671 |
No cracking |
|
(-55˚C/4 hrs) |
||
|
Elongation at break after aging |
ASTM D2671 |
≥100% |
|
(225˚C/168 hrs) |
||
|
Flammability |
ASTM D2671 |
VW-1 |
